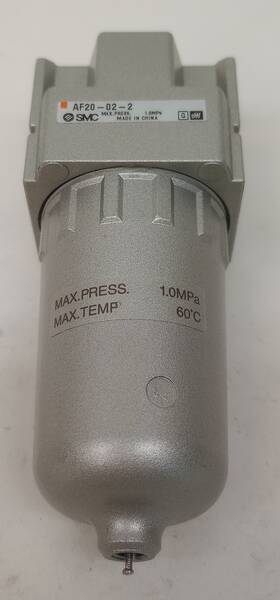

SMC AF20-02-2 Filter Modular Ports 1/4

( Brand: Smc ), ( Manufacturer Part Number: AF20-02-2 ), ( Part Type: Filter ), ( Country Of Origin: China ), ( Input Output Diameter: 1/4 In )

Review SMC Filter Modular 1/4 Inch Ports

The **SMC AF20-02-2 Filter Modular 1/4" Ports** is a high-performance, precision-engineered air filter designed to deliver exceptional filtration efficiency and reliability in demanding industrial and pneumatic applications. Part of SMC s advanced AF series, this modular filter is engineered to provide superior protection against contaminants such as dust, moisture, and particulate matter, ensuring clean, high-quality compressed air for critical processes. With its compact yet robust construction, the AF20-02-2 features a **1/4-inch NPT (National Pipe Thread) connection**, making it versatile for integration into a wide range of pneumatic systems, including CNC machines, robotics, and automated assembly lines. The filter s **modular design** allows for easy installation, maintenance, and replacement of components, minimizing downtime and simplifying system upkeep. Inside, a **high-efficiency pleated filter element** captures even the finest particles, while a **drain valve** facilitates effortless removal of accumulated moisture and debris, ensuring optimal performance and longevity. Constructed from durable materials, including corrosion-resistant housing and reinforced seals, this filter is built to withstand harsh operating conditions, providing consistent filtration performance under high-pressure and high-flow demands. Whether used in cleanroom environments, manufacturing plants, or precision instrumentation, the SMC AF20-02-2 delivers a reliable solution for maintaining air purity and protecting sensitive pneumatic equipment from contamination. Its compact footprint and straightforward design make it an ideal choice for engineers and technicians seeking a dependable, long-lasting filter that enhances system efficiency and operational integrity.

The **SMC AF20-02-2** is a modular air filter designed for pneumatic systems, offering filtration for compressed air or gas lines. Below is a detailed breakdown of its pros and cons, followed by a conclusion and recommendation.

---

### **Pros of the SMC AF20-02-2 Modular Air Filter**

1. **High Filtration Efficiency**

The filter is designed to remove particulate contaminants, oil aerosols, and moisture from compressed air, ensuring cleaner air supply for pneumatic components. This helps prevent wear and tear on downstream equipment like valves, cylinders, and actuators.

2. **Modular and Easy to Install**

The modular design allows for quick installation and replacement without extensive downtime. The 1/4-inch ports are standard for many pneumatic systems, making it compatible with a wide range of fittings and hoses.

3. **Durable Construction**

SMC is known for robust industrial components, and this filter is built to withstand high-pressure applications common in manufacturing and automation. The housing is typically made of metal (e.g., aluminum or steel), ensuring longevity.

4. **Drainable Moisture Separation**

Many versions of this filter include a moisture separator, allowing water and condensate to collect at the bottom for easy drainage. This prevents water buildup that could cause corrosion or operational issues.

5. **Compatibility with SMC Systems**

If you re already using SMC components (e.g., valves, regulators), this filter integrates seamlessly into your existing setup, reducing the need for third-party adapters or conversions.

6. **Low Maintenance**

With proper installation and regular filter element replacement (typically every 6 12 months, depending on air quality), the filter requires minimal upkeep. The replaceable elements are often affordable and readily available.

7. **Pressure Drop Optimization**

SMC designs its filters to minimize pressure drop while maintaining filtration efficiency, which helps preserve system performance and energy efficiency.

8. **Wide Application Range**

Suitable for general industrial, automotive, packaging, and automation applications where clean air is critical.

---

### **Cons of the SMC AF20-02-2 Modular Air Filter**

1. **Limited Flow Rate**

The AF20-02-2 is designed for moderate flow rates (typically up to 20 L/min or similar, depending on the exact model and pressure). For high-volume applications, you may need multiple units or a larger filter (e.g., AF20-04-2 or AF30 series).

2. **Replacement Costs**

While the filter itself is durable, the replaceable filter elements can add up in cost over time, especially in high-dust or dirty environments where they need frequent replacement.

3. **Pressure Rating Limitations**

The filter is rated for standard pneumatic pressures (e.g., 10 100 psi). For extremely high-pressure systems (e.g., above 200 psi), you may need a specialized high-pressure filter.

4. **Space Constraints**

The modular design is compact, but if you re working in a tight space, the filter s size (especially with attached drain valves) might require careful placement.

5. **Dependence on Air Quality**

In environments with extremely high particulate or oil contamination (e.g., near machining centers or chemical plants), the standard filter may not suffice, and additional filtration stages (e.g., activated carbon or HEPA filters) may be needed.

6. **Potential for Clogging**

If the filter element isn t replaced regularly, it can clog, increasing pressure drop and reducing system efficiency. This requires monitoring and maintenance discipline.

7. **Brand-Specific Compatibility**

While SMC filters are widely compatible with their own components, using them with non-SMC equipment might require adapters or additional seals, adding complexity.

8. **Cost Compared to Basic Filters**

For very low-budget applications, generic or aftermarket filters might be cheaper upfront, though they may lack the durability or efficiency of SMC s offerings.

---

### **Conclusion**

The **SMC AF20-02-2** is a reliable, high-quality modular air filter well-suited for most industrial pneumatic applications where clean air is essential. Its strengths lie in its filtration efficiency, ease of installation, durability, and compatibility with SMC systems. However, it may not be ideal for high-flow or high-pressure applications without modification, and replacement costs should be factored into long-term maintenance plans.

For users already invested in SMC s ecosystem, this filter is a solid choice due to its seamless integration and performance. Those in less demanding environments or with tight budgets might consider alternatives, but the trade-offs in reliability and efficiency often justify the cost.

---

### **Recommendation**

- You re using it in a standard pneumatic system with moderate flow rates (up to 20 L/min).

- You prioritize clean air to protect downstream components (e.g., valves, cylinders).

- You re already part of an SMC system and want compatibility and ease of integration.

- Your environment isn t excessively dirty (e.g., no heavy machining or extreme contaminants).

- You need higher flow rates (opt for a larger model like AF20-04-2 or AF30 series).

- Your system operates at very high pressures (look for high-pressure-rated filters).

- You re on a tight budget and can tolerate slightly lower filtration efficiency (generic filters may suffice).

- Your air quality is extremely poor (combine with additional filtration stages like activated carbon).

Always follow SMC s guidelines for filter replacement intervals (typically every 6 12 months) and drain moisture regularly to maximize performance and lifespan. Pair it with a pressure gauge to monitor pressure drop, which is an early indicator of clogging.

Details:

New other - SMC AF20-02-2 Filter Modular 1/4 Ports.

specifications hydraulivalv:

• brand: Smc
• mpn: Af20-02-2
• part type: Filter
• country of origin: China
• input output diameter: 1/4 In

seller hydraulivalv:

• rating: 100.0%
• # reviews: 26038
• city: Hudsonville, Michigan

shipping hydraulivalv:

• cost: $0.00
• service: Standard
• transit: 2-6 Days
• type: Fixed
• class: Standard

returns hydraulivalv:

• time: 30 Days
• policy: Returns Accepted
• paid by: Buyer
• method: Money back

offer hydraulivalv:

• options: Ship-to-home
• sold: 0
• availability: In Stock
• quantity: 1
• started: February 4, 2026

general hydraulivalv:

• condition: New Open box
• Hydraulics, Pneumatics, Pumps Plumbing > Hydraulic Filters Cartridges > Hydraulic Filters

payments hydraulivalv:

• other
• wallet: Paypal
• credit card: Discover
